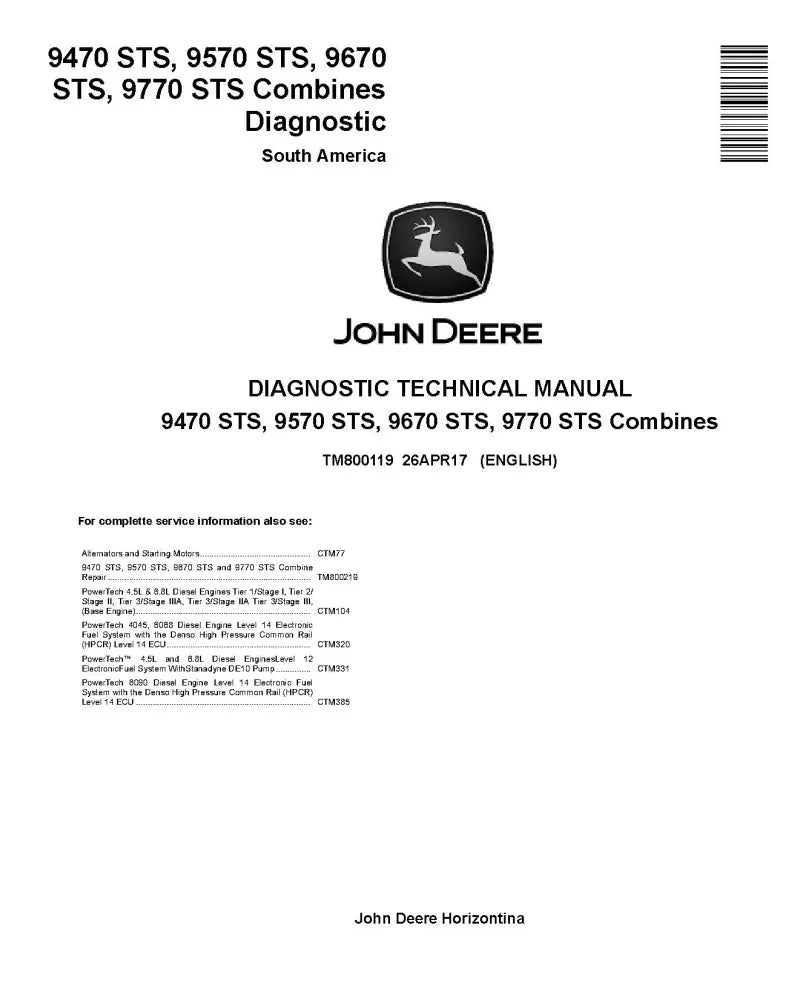

JOHN DEERE 9770 STS COMBINE TM800119 DIAGNOSTIC MANUAL - PDF

JOHN DEERE 9770 STS COMBINE TM800119 DIAGNOSTIC MANUAL - PDF

  • Discount
  • $197.00

DOWNLOAD COMPLETE DIAGNOSTIC MANUAL FOR JOHN DEERE 9770 STS COMBINE | PUBLICATION NUMBER - TM800119

The John Deere 9770 STS Combine TM800119 Diagnostic Manual provides comprehensive technical guidance for troubleshooting and servicing this advanced harvesting equipment. This PDF resource delivers detailed diagnostic procedures, fault code interpretations, and system-level solutions designed for technicians and operators requiring in-depth machine knowledge. Access critical maintenance protocols, electrical schematics, and component specifications to maximize uptime and operational efficiency. Essential documentation for professional equipment management and repair operations.

CONTENTS:
Foreword
General
Safety
Combine and Component Identification
General Specifications
Diagnostic and Testing Procedures
Diagnostic Trouble Codes
Accessing Diagnostic Codes and Addresses
ADU - Armrest Display Unit
 CAB - Control Unit CAB and Cab Power Module Diagnostic Trouble Codes
CDU - Cornerpost Display Unit
ECU - Control Unit ECU Diagnostic Trouble Codes
GreenStar Display Warning Messages and Fault Codes
GreenStar KeyCard and Data Storage Card Warning Messages
GreenStar Mobile Processor Warning Messages
HARVEST DOC Warning Messages
HMM - Harvest Moisture Meter
LC1 - Control Unit LC1 and Left Power Module 1 Diagnostic Trouble Codes
LC2 - Control Unit LC2 and Left Power Module 2 Diagnostic Trouble Codes
PTP - Calibration Codes
PTP - Control Unit PTP Diagnostic Trouble Codes
RCU - Control Unit RCU and Right Power Module Diagnostic Trouble Codes
SFC - Control Unit SFC Diagnostic Trouble Codes
SSU - Control Unit SSU Diagnostic Trouble Codes
SSU - Last Exit Codes
LCR - StarFire Receiver 300 Diagnostic Trouble Codes
StarFire Receiver (iTC and 3000) Diagnostic Trouble Codes
StarFire Receiver Warning Messages
Terrain Compensation Module Diagnostics Trouble Codes
VCM - Control Unit VCM Diagnostic Trouble Codes
Guidance - Universal Row Guidance Diagnostic Trouble Codes
VTi - GreenStar Display 2100/2600

TOTAL PAGE - 3410

FILE FORMAT - PDF
FILE LANGUAGE - ENGLISH

: File Format - PDF (Portable Document Format)


: Manual Images - (High-Quality PDF)


: Printable - Entire Manual


: Compatible - All versions of Windows, ios, android


: The manual includes - Bookmarks, Searchable Text, Wiring, and Hydraulic Schematics


: Download - You will receive the PDF manual in your email after the purchase
