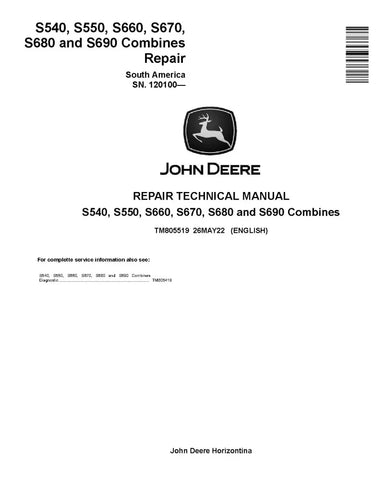

DOWNLOAD COMPLETE REPAIR MANUAL FOR JOHN DEERE S690 COMBINE | PUBLICATION NUMBER - TM805519

The John Deere S690 Combine TM805519 Repair Manual provides comprehensive technical guidance for maintaining and servicing this advanced harvesting equipment. This PDF document delivers detailed procedures, specifications, and troubleshooting solutions essential for operators and technicians. Access critical information on engine systems, hydraulics, electrical components, and mechanical assemblies. Whether performing routine maintenance or addressing complex repairs, this manual ensures you have the authoritative reference needed to keep your S690 operating at peak performance. Ideal for agricultural professionals seeking reliable, manufacturer-approved documentation.

CONTENTS:
Engine
Remove and Install Components
Cooling System
Fuel and Air
Air Intake System
Diesel Fuel System
Electrical System
Batteries
Harness and Connector Repair
Wire Harness Routing
Controllers and Power Distribution
Lighting
Operators Station
Sensors and Switches
Wiper
Alternator
Starting Motor
GreenStar Components
Power Train
Transmission and Differential-Three Speed Transmission
Hydrostatic System-Three Speed Transmission
Transmission and Differential-Two-Range Automatic Transmission
Drive Pump-Two-Range Automatic Transmission
Hydrostatic Drive Motor-Two-Range Automatic Transmission
Single Reduction Final Drive
Cam Lobe Motor
Tires and Wheels
Steering and Brakes
Steering
Brakes
Brakes-Two-Range Automatic Transmission
Hydraulic System
Hydraulic Reservoir
Hydraulic Motors and Pumps
Hydraulic Valves
Hydraulic Cylinders
Accumulators
Separator Shell
Gull Wing Doors
Fiberglass Repair
Operator Station
Air Conditioning System (R-134a)
Components
Cab
Feeder House
Conveyor
Top Shaft and Slip Clutch
Feeder House Drives and Reverser Gear Case
Fore/Aft and Lateral Tilt Frame
Five Speed Feeder House Drive Gear Case
Separator
Separator Repair
Separator Drives
Residue Disposal
Conveyor Augers, Cleaning Fan and Chaffer and Sieve Frame
Tailings Elevator and Augers
Primary Countershaft Gear Case
Header Electromagnetic Clutch
Grain Tank and Unloading System
 Grain Tank Cross Augers
Unloading Auger System Drives
Vertical Unloading Auger and Lower Gear Case
Horizontal Unloading Auger and Gear Case
Grain Elevator
Grain Tank and Extensions
Engine Gear Case and Control Valve
Engine Gear Case and Valve
Dealer Fabricated Tools
Dealer Fabricated Tools

TOTAL PAGE - 1730

FILE FORMAT - PDF
FILE LANGUAGE - ENGLISH
